Excavator

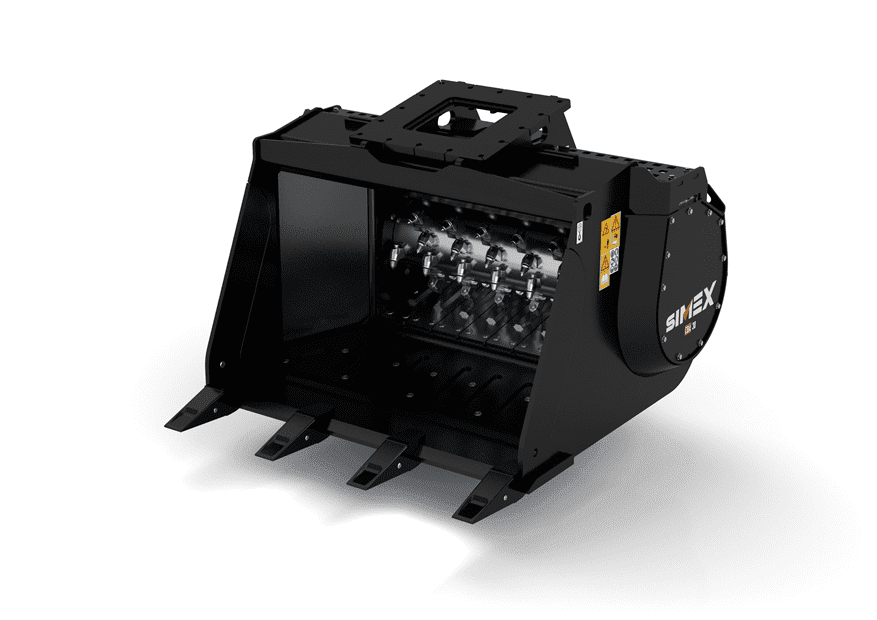

CBA asphalt granulator buckets are specifically designed for the volumetric reduction of asphalt slabs or other aggregates directly on site. The cylindric drum composed of interchangeable teeth is activated by direct-drive high-displacement radial piston motors.

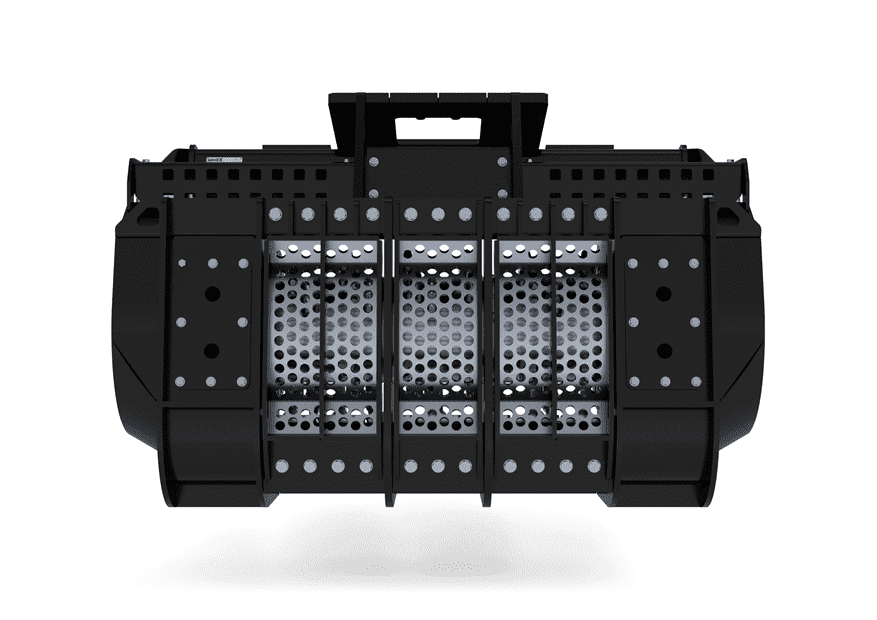

The back-grille determines the size of the spoil piece and it is available in different setup. The result is a reclaimed asphalt pavement (RAP) with a certifiable and measurable granulometry.
Automatic system inverts the rotation of the drum in case of blocking, granting high productivity and avoiding downtimes.
Features
-
ASPHALT RECOVERY AND REUSE DIRECTLY ON SITE
-
AUTOMATIC SYSTEM INVERTS THE ROTATION IN CASE OF BLOCKING
-
CONFIGURABLE BACK-GRILLE DETERMINES THE SPOIL PIECE SIZE
Models
CBA 20
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Bucket weight empty (3) |
|---|---|---|
|
12-18 ton |
0,60 m3 |
1320 kg |
|
26400-40000 lbs |
0,78 yd3 |
2900 lbs |
1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the crusher bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
CBA 30
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Bucket weight empty (3) |
|---|---|---|
|
18-28 ton |
0,8 m3 |
2170 kg |
|
40000-62000 lbs |
1,05 yd3 |
4775 lbs |
1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the crusher bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
CBA 40
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Bucket weight empty (3) |
|---|---|---|
|
25-40 ton |
1,0 m3 |
2900 kg |
|
55000-88000 lbs |
1,30 yd3 |
6400 lbs |
1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the crusher bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
