FOR SKID STEER LOADERS
Skid Steer Loader
CHD Chain Trenchers are designed for set-section trenching on soft soils. The discharge screw on the righthand side and the trench clearing device makes sure the trench is kept clean, while the slide provides maximum stability at any trenching depth. Chain is available with hoe blades for soft soils or hoe blades with teeth for mixed soils.
Features
-
CLEAN TRENCH
-
MAXIMUM STABILITY AT ANY DEPTH
Models

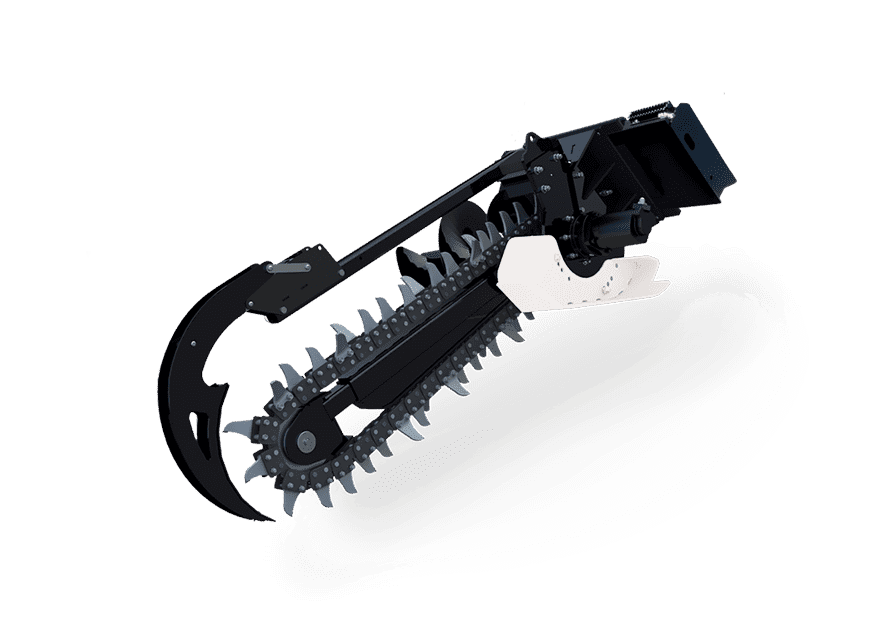

CHD 90S
Per terreni morbidi.
| Max. trench depth | Trench width - standard | Trench width - optional | Operating weight (1) |
|---|---|---|---|
|
900 mm |
150 mm |
100-200 mm |
280 kg |
|
35 inch |
6 inch |
4-8 inch |
617 lbs |
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
CHD 120S
Per terreni morbidi.
| Max. trench depth | Trench width - standard | Trench width - optional | Operating weight (1) |
|---|---|---|---|
|
1200 mm |
150 mm |
100-200 mm |
425 kg |
|
47 inch |
6 inch |
4-8 inch |
936 lbs |
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
CHD 90
For mixed soils.
| Max. trench depth | Trench width - standard | Trench width - optional | Operating weight (1) |
|---|---|---|---|
|
900 mm |
150 mm |
200-250 mm |
715 kg |
|
35 inch |
6 inch |
8-10 inch |
1575 lbs |
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.

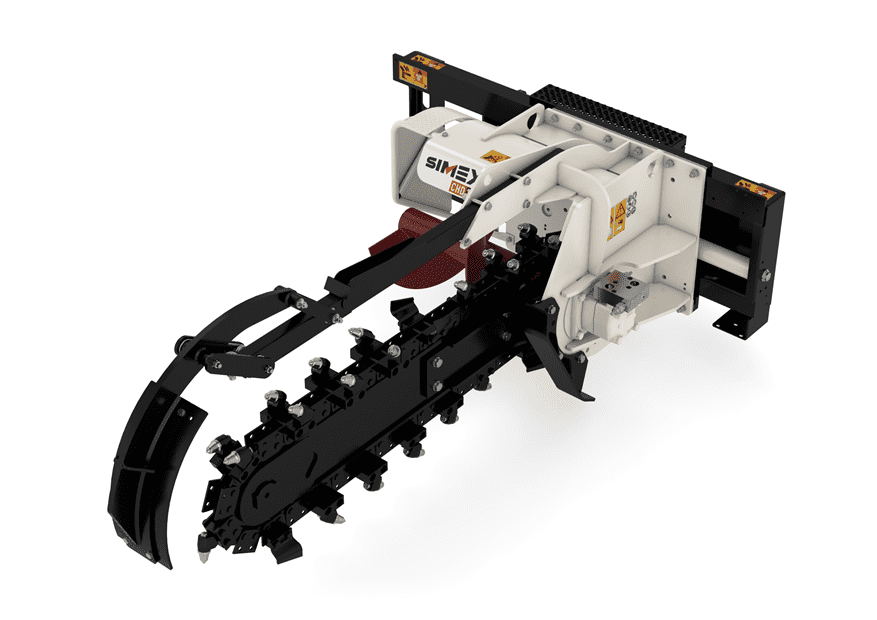

CHD 120
For mixed soils.
| Max. trench depth | Trench width - standard | Trench width - optional | Operating weight (1) |
|---|---|---|---|
|
1200 mm |
150 mm |
200-250 mm |
780 kg |
|
47 inch |
6 inch |
8-10 inch |
1715 lbs |
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
CHD 150
For mixed soils.
| Max. trench depth | Trench width - standard | Trench width - optional | Operating weight (1) |
|---|---|---|---|
|
1500 mm |
150 mm |
200 mm |
830 kg |
|
59 inch |
6 inch |
8 inch |
1830 lbs |
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
