Simex TF cutter heads are ideal for trenching, profiling rock and cement walls, tunneling, quarrying, demolition, dredging, finishing operations and underwater works. They are highly effective where conventional excavation systems are too weak and percussion systems have little effect. Their quiet operation allows them to be put to work near sensitive areas (residential zones, hospitals, schools, bridges and infrastructure). Especially recommended for finishing operations, where high precision, minimum disturbance and optimum aesthetic result are required.
Features
-
PRECISE CUT
-
DEEP AND NARROW TRENCHES
-
LOW VIBRATIONS
-
UNDERWATER WORKS
-
HIGH PERFORMANCE
-
MAINTENANCE-FREE
-
LOW NOISE LEVEL
-
MILLED MATERIAL REUSED ON SITE
Models
TF 200
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
2,5-7 ton |
300 kg |
565 mm |
|
5500-15500 lbs |
660 lbs |
22 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
TF 400
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
6-12 ton |
470 kg |
625 mm |
|
13000-26500 lbs |
1050 lbs |
25 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
TF 650
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
6-12 ton |
470 kg |
625 mm |
|
13000-26500 lbs |
1050 lbs |
25 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
TF 850
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
14-22 ton |
1100 kg |
800 mm |
|
30800-48500 lbs |
2420 lbs |
32 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
TF 1100
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
20-34 ton |
1340 kg |
850 mm |
|
44000-80000 lbs |
2950 lbs |
34 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.

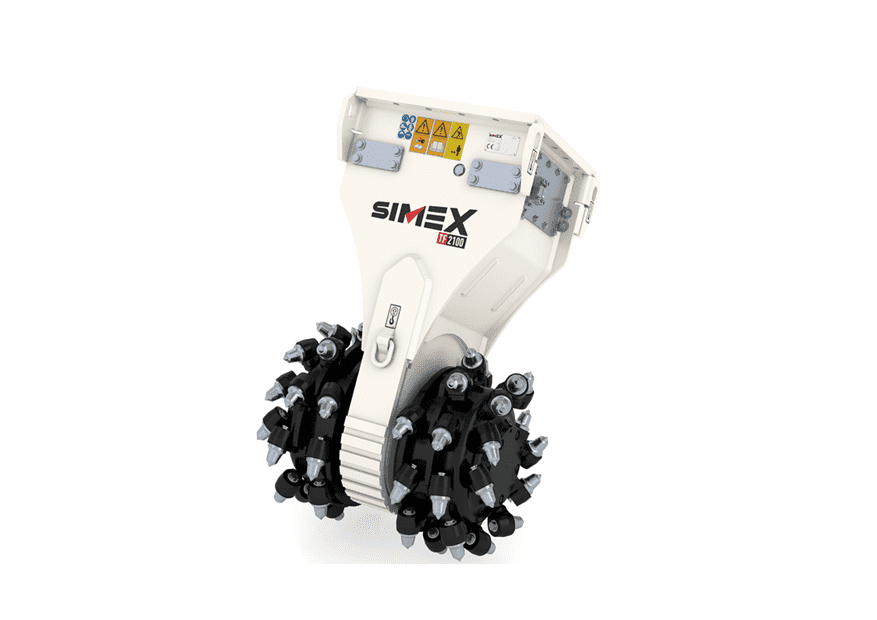

TF 2100
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
28-45 ton |
2380 kg |
950 mm |
|
61700-99000 lbs |
5240 lbs |
38 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
TF 2500
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
40-55 ton |
2700 kg |
1000 mm |
|
88000-121000 lbs |
5950 lbs |
40 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
TF 3100
| Recommended excavator weight (1) | Weight without bracket | Drum width (standard) |
|---|---|---|
|
50-70 ton |
2940 kg |
1250 mm |
|
110000-154000 lbs |
6470 lbs |
50 inch |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
