FOR SPECIAL APPLICATIONS
Skid Steer Loader
Simex consistently meets users’ demands, delivering them the best solutions to solve even the most complex application challenges. The PL SG planers for working under guard rails and PL RAIL planers for rail tracks are further proof of this commitment.
Models

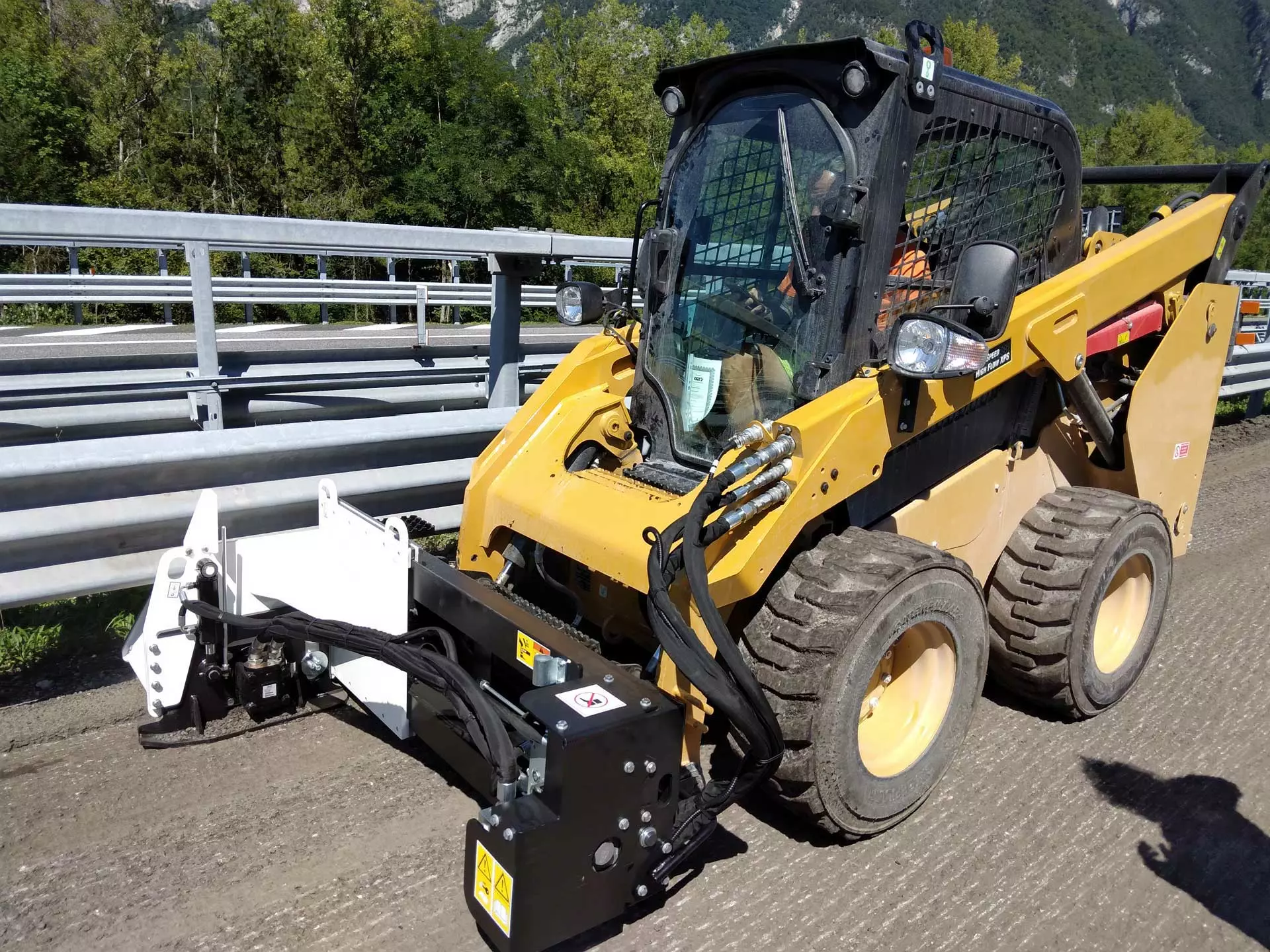

PL 40.25 SG
Intended for mounting on front loaders and skid steer loaders. Designed to remove layers of asphalt or cement under the guard rail. Adjustable milling depth. Available in version with conveyor belt for removing material from trench. Interchangeable milling drums in different widths available on request.
| Standard drum width | Depth | Required Oil Flow |
|---|---|---|
|
350 mm |
0-150 mm |
75-140 l/min |
|
14 inch |
0-6 inch |
18-38 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.

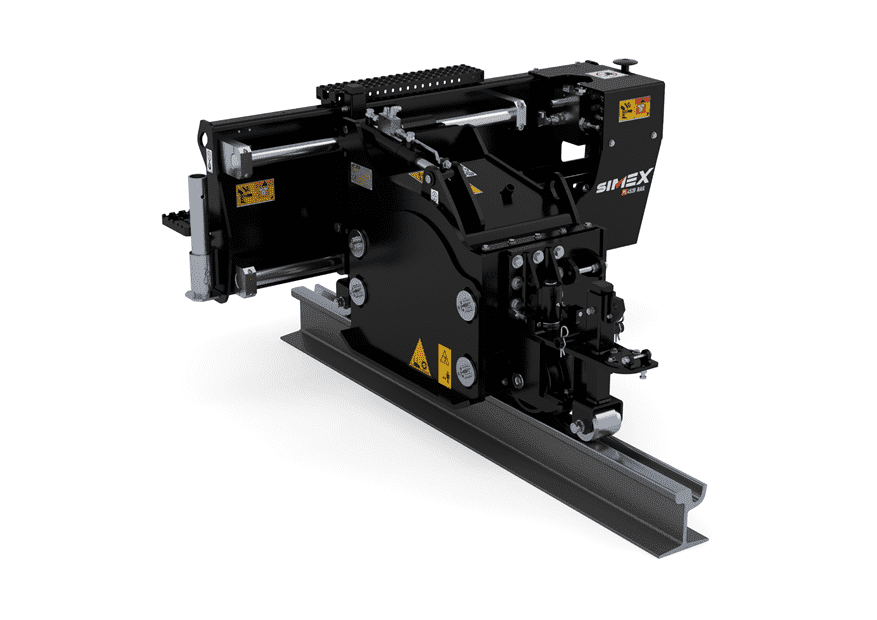

PL 40.25 RAIL
Studied for creating one or two small trenches at sides of rail tracks to be filled later with sound-insulating material.
Fitted with two guide wheels positioned at front and rear of milling disks that run on the rail to guarantee maximum precision.
Wheels available in different forms and sections for different rail profiles.
Interchangeable milling disks in different widths available on request.
| Standard drum width | Depth | Required Oil Flow |
|---|---|---|
|
30-40-50-60 mm |
0-70 mm |
75-115 l/min |
|
1,2-1,6-2-2,4 inch |
0-2,75 inch |
20-30 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
