Designed to mill pre-set sections on hard and compact surfaces, the PLB and PHD planers for excavators are able to remove the entire layer of asphalt or cement in preparation for trenching, or are used to mill deteriorated sections for later resurfacing.
These planers for excavators can work on horizontal, vertical or sloped surfaces.
Features
-
MILL ON HORIZONTAL, VERTICAL OR SLOPED SURFACES
-
CONSTANT PLANING DEPTH
-
INDEPENDENT RH-LH DEPTH ADJUSTMENT
-
PERFECT SURFACES WITH SIDE-BY-SIDE PASSES
Models
PLB 200
Single-depth planers for excavators
| Recommended excavator weight (1) | Width | Depth | Operating weight |
|---|---|---|---|
|
2-4 ton |
200 mm |
0-70 mm |
185 kg |
|
4400-8800 lbs |
8 inch |
0-3 inch |
407 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PLB 300
Single-depth planers for excavators
| Recommended excavator weight (1) | Width | Depth | Operating weight |
|---|---|---|---|
|
3-7 ton |
300 mm |
0-100 mm |
390 kg |
|
6600-15400 lbs |
12 inch |
0-4 inch |
860 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PLB 350
Double-depth planers for excavators
| Recommended excavator weight (1) | Width | Depth | Operating weight |
|---|---|---|---|
|
6-9 ton |
350 mm |
0-120 mm |
530 kg |
|
13000-20000 lbs |
14 inch |
0-5 inch |
1160 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PLB 400
Single-depth planers for excavators
| Recommended excavator weight (1) | Width | Depth | Operating weight |
|---|---|---|---|
|
6-9 ton |
400 mm |
0-120 mm |
515 kg |
|
13000-20000 lbs |
16 inch |
0-5 inch |
1130 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PLB 450
Single-depth planers for excavators
| Recommended excavator weight (1) | Width | Depth | Operating weight |
|---|---|---|---|
|
8-13 ton |
450 mm |
0-150 mm |
710 kg |
|
17600-29000 lbs |
18 inch |
0-6 inch |
1560 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.

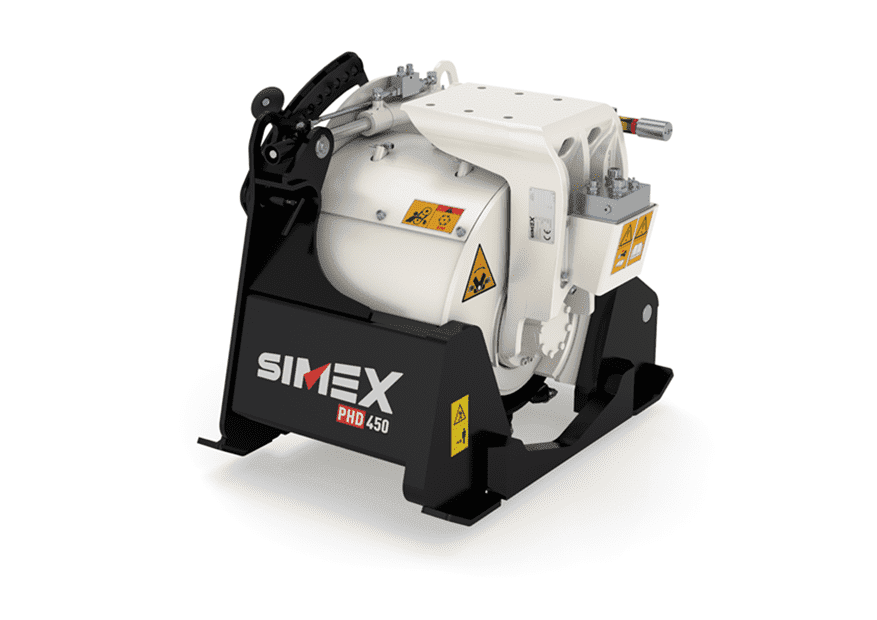

PHD 450
Double-depth planers for excavators
| Recommended excavator weight (1) | Width | Depth | Operating weight |
|---|---|---|---|
|
10-16 ton |
450 mm |
0-180 mm |
900 kg |
|
22000-35000 lbs |
18 inch |
0-7 inch |
1980 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PHD 600
Single-depth planers for excavators
| Recommended excavator weight (1) | Width | Depth | Operating weight |
|---|---|---|---|
|
16-24 ton |
600 mm |
0-200 mm |
1150 kg |
|
35000-53000 lbs |
24 inch |
0-8 inch |
2530 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
