SELF-LEVELING
Front Loader
Skid Steer Loader
Simex PL self-leveling road planers are designed for removing the entire layer of asphalt or cement in preparation for trenching or for milling deteriorated sections for later resurfacing. Created to mill pre-set sections on hard and compact surfaces such as asphalt and cement, they allow the possibility to reuse milled material for backfilling trenches.
Thanks to the exclusive self-leveling system, planing depth is constant in any condition.
Features
-
CONSTANT PLANING DEPTH
-
OPTIMAL VISIBILITY FOR THE OPERATOR
-
PERFECT SURFACES WITH SIDE-BY-SIDE PASSES
-
MAXIMUM SAFETY
-
STABILITY AND NO VIBRATIONS
Models
PL 25.10
| Width | Depth | Required Oil Flow |
|---|---|---|
|
250 mm |
0-70 mm |
30-60 l/min |
|
10 inch |
0-2,7 inch |
8-16 gpm |
PL 35.15
| Width | Depth | Required Oil Flow |
|---|---|---|
|
350 mm |
0-110 mm |
45-80 l/min |
|
14 inch |
0-4,3 inch |
12-21 gpm |
PL 40.15
Designed to mill pre-set sections on hard and compact surfaces
| Width | Depth | Required Oil Flow |
|---|---|---|
|
400 mm |
0-150 mm |
65-115 l/min |
|
16 inch |
0-5,9 inch |
17-30 gpm |
PL 40.35
Designed to mill pre-set sections on hard and compact surfaces, able to go down deeper.
| Width | Depth | Required Oil Flow |
|---|---|---|
|
400 mm |
100-350 mm |
110-170 l/min |
|
16 inch |
4-13,7 inch |
29-45 gpm |
PL 45.20
Designed to mill pre-set sections on hard and compact surfaces
| Width | Depth | Required Oil Flow |
|---|---|---|
|
450 mm |
0-150 mm |
75-115 l/min |
|
18 inch |
0-5,9 inch |
20-30 gpm |
PL 45.20HP
Designed to mill pre-set sections on hard and compact surfaces
| Width | Depth | Required Oil Flow |
|---|---|---|
|
450 mm |
0-170 mm |
100-150 l/min |
|
18 inch |
0-6,7 inch |
27-40 gpm |
PL 50.20
Designed to mill pre-set sections on hard and compact surfaces
| Width | Depth | Required Oil Flow |
|---|---|---|
|
500 mm |
0-170 mm |
100-150 l/min |
|
20 inch |
0-6,7 inch |
27-40 gpm |
PL 60.20
Designed to mill pre-set sections on hard and compact surfaces
| Width | Depth | Required Oil Flow |
|---|---|---|
|
600 mm |
0-170 mm |
100-150 l/min |
|
24 inch |
0-6,7 inch |
27-40 gpm |
PL 60.20HP
Designed to mill pre-set sections on hard and compact surfaces
| Width | Depth | Required Oil Flow |
|---|---|---|
|
600 mm |
0-170 mm |
110-170 l/min |
|
24 inch |
0-6,7 inch |
29-45 gpm |
PL 75.20
Designed to mill pre-set sections on hard and compact surfaces
| Width | Depth | Required Oil Flow |
|---|---|---|
|
750 mm |
100-350 mm |
110-170 l/min |
|
30 inch |
0-6,7 inch |
29-45 gpm |

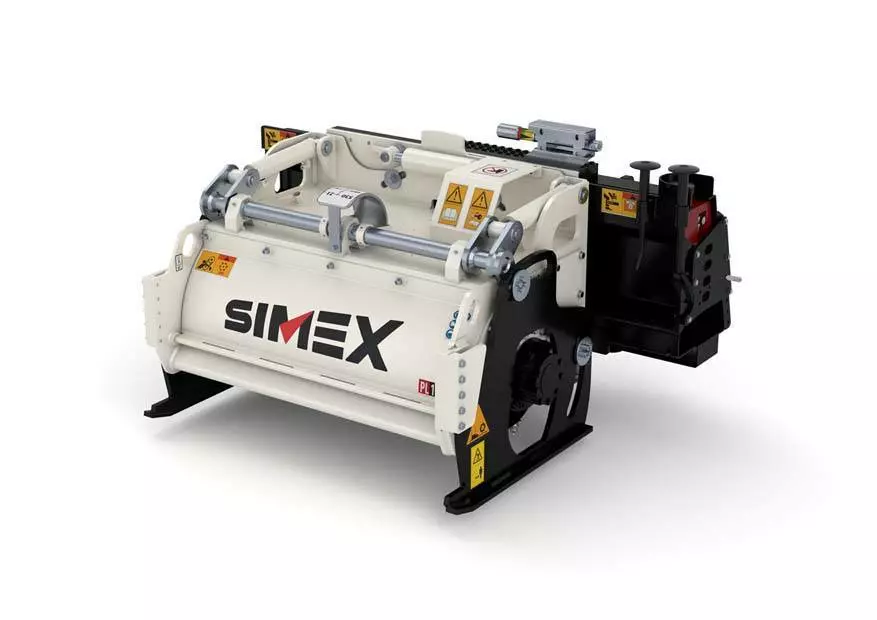

PL 1000
Ideal for milling jobs
| Width | Depth | Required Oil Flow |
|---|---|---|
|
1000 mm |
0-130 mm |
110-190 l/min |
|
40 inch |
0-5 inch |
29-50 gpm |
PL 1200
Ideal for milling jobs
| Width | Depth | Required Oil Flow |
|---|---|---|
|
1200 mm |
0-130 mm |
120-190 l/min |
|
48 inch |
0-5 inch |
32-50 gpm |

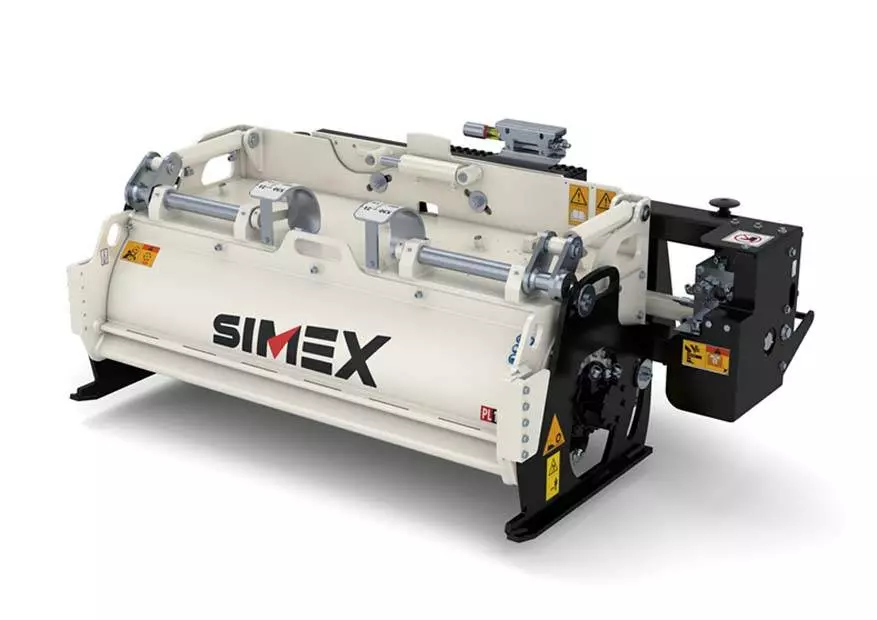

PL 1500
Ideal for milling jobs, 1500mm width
| Width | Depth | Required Oil Flow |
|---|---|---|
|
1500 mm |
0-130 mm |
130-200 l/min |
|
60 inch |
0-5 inch |
34-53 gpm |
