SELF-LEVELING WITH CONVEYOR BELT
Skid Steer Loader
Simex PLC self-leveling planers clean the milled trench and deposit the extracted material to the right or left. Thanks to the self-leveling system, planing depth is constant in any condition.
Self-leveling planers are indispensable for optimizing collection of milled material for reuse on site or for transporting away.
Can be installed with spray system for dust control.
Features
-
CLEAN TRENCH
-
STABILITY AND NO VIBRATIONS
-
CONSTANT PLANING DEPTH
-
PERFECT SURFACES WITH SIDE-BY-SIDE PASSES
-
MAX. SAFETY
-
EXCELLENT VISIBILITY FOR OPERATOR
Models
PLC 18
Designed to mill pre-set sections on hard and compact surfaces
| Standard drum width | Max. depth | Required Oil Flow |
|---|---|---|
|
450 mm |
150 mm |
85-120 l/min |
|
18 inch |
6 inch |
22-32 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.

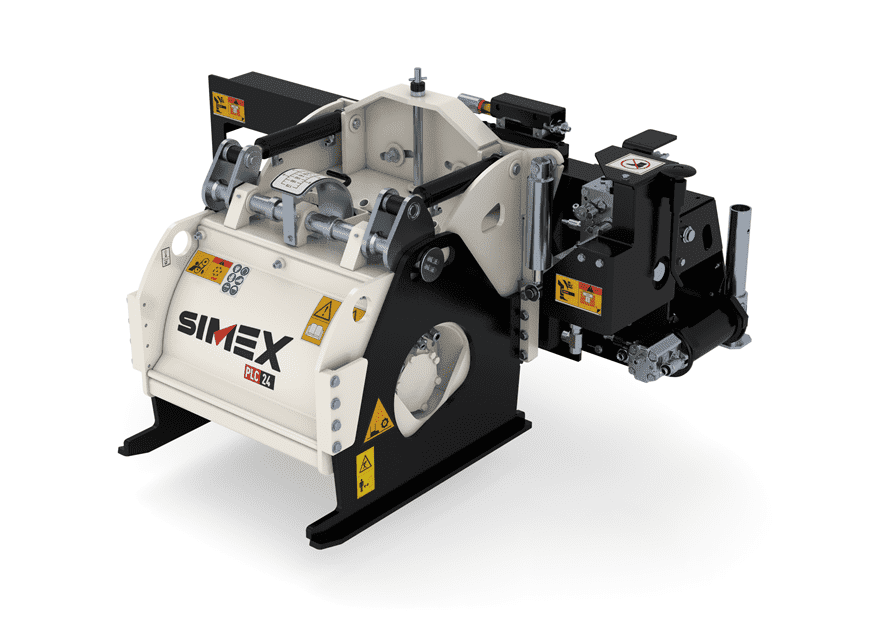

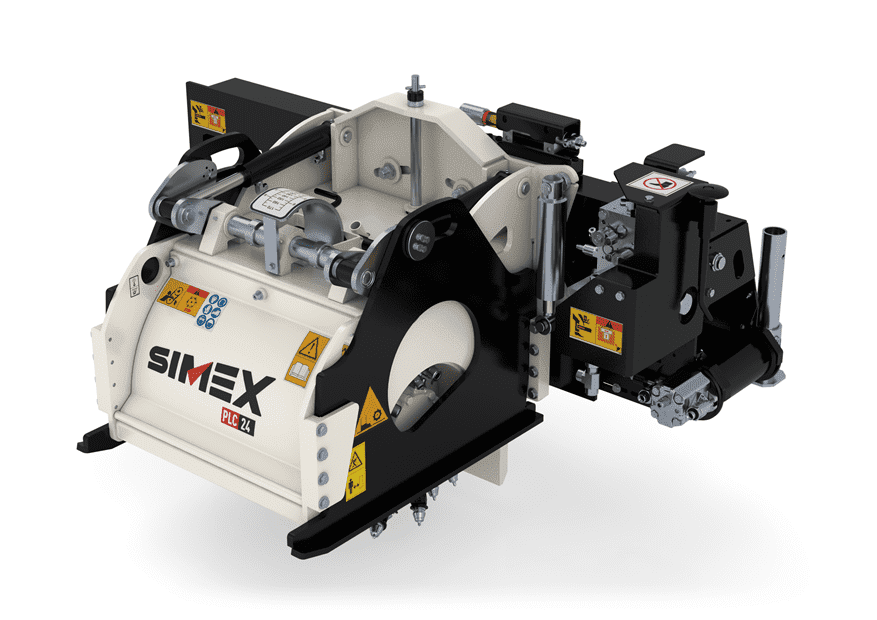

PLC 24
Designed to mill pre-set sections on hard and compact surfaces
| Standard drum width | Max. depth | Required Oil Flow |
|---|---|---|
|
600 mm |
170 mm |
100-150 l/min |
|
24 inch |
7 inch |
27-40 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PLC 30
Designed to mill pre-set sections on hard and compact surfaces
| Standard drum width | Max. depth | Required Oil Flow |
|---|---|---|
|
750 mm |
170 mm |
110-170 l/min |
|
30 inch |
7 inch |
29-45 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PLC 40
Designed to mill pre-set sections on hard and compact surfaces
| Standard drum width | Max. depth | Required Oil Flow |
|---|---|---|
|
1000 mm |
130 mm |
110-190 l/min |
|
40 inch |
5 inch |
29-50 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
