ADJUSTABLE SIZE OUTPUT
Excavator
Mini Excavator
Designed for separating different-sized materials on the work site, Simex VSE screening buckets are unique for their easy loading, very simple operation and high productivity. The exclusive Simex patent allows rapid adjustment of output size of the screened material in only seconds via a control in the operator cabin.

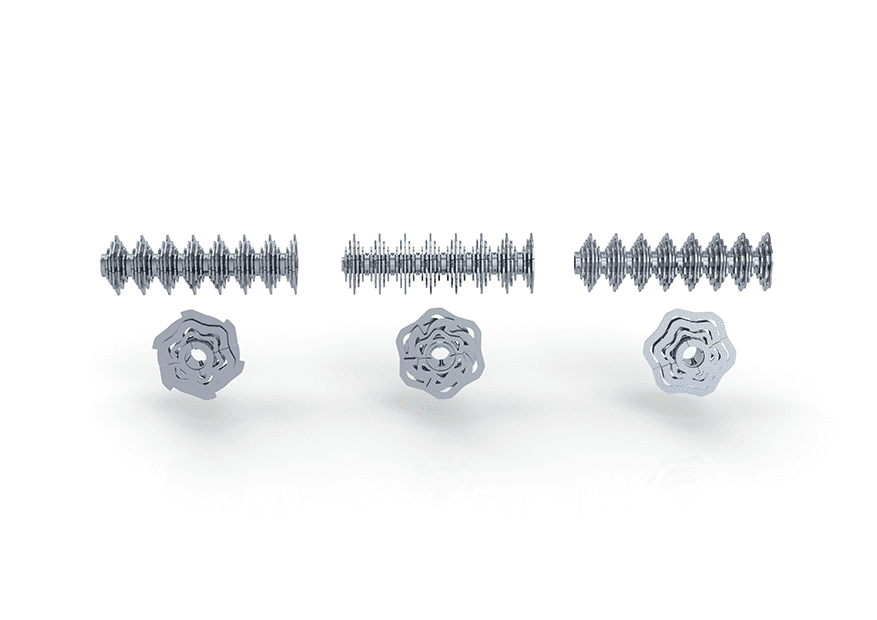

FIT: the new screening tool configuration system.
Each element is composed of 5 independent parts, designed to easily interlock with each other with no weldings. They are easily replaceable without difficult operations and without the need of shafts unstrapping: this means 75% less maintenance costs, since it is possible to replace even just one single disc or blade. The system allows multiple configurations depending on the materials to be screened. Simex provides to the users 3 different set-ups, but many others are possible thanks to screening elements that are 100% interchangeable.
Features
-
QUICK ADJUSTMENT OF OUTPUT SIZE
-
EASY LOADING
-
EFFECTIVE WITH WET MATERIAL
-
HIGH PRODUCTIVITY
-
SIMPLE OPERATION
-
EASILY REPLACEABLE SCREENING TOOLS
Models
VSE 2
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Operating weight (3) |
|---|---|---|
|
1,5-3 ton |
0,05 m3 |
105 kg |
|
3300-6600 lbs |
0,06 yd3 |
230 lbs |
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
VSE 5
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Operating weight (3) |
|---|---|---|
|
4-8 ton |
0,20 m3 |
360 kg |
|
8800-17500 lbs |
0,26 yd3 |
790 lbs |
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
VSE 10
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Operating weight (3) |
|---|---|---|
|
8-13 ton |
0,40 m3 |
965 kg |
|
17500-29000 lbs |
0,52 yd3 |
2125 lbs |
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
VSE 20
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Operating weight (3) |
|---|---|---|
|
12-18 ton |
0,70 m3 |
1400 kg |
|
26000-40000 lbs |
0,92 yd3 |
3080 lbs |
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
VSE 30
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Operating weight (3) |
|---|---|---|
|
16-30 ton |
1,00 m3 |
1845 kg |
|
35000-66000 lbs |
1,30 yd3 |
4060 lbs |
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
VSE 40
| Recommended excavator weight (1)(2) | Bucket capacity (SAE) | Operating weight (3) |
|---|---|---|
|
30-45 ton |
1,80 m3 |
2725 kg |
|
66000-99000 lbs |
2,35 yd3 |
6000 lbs |
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
