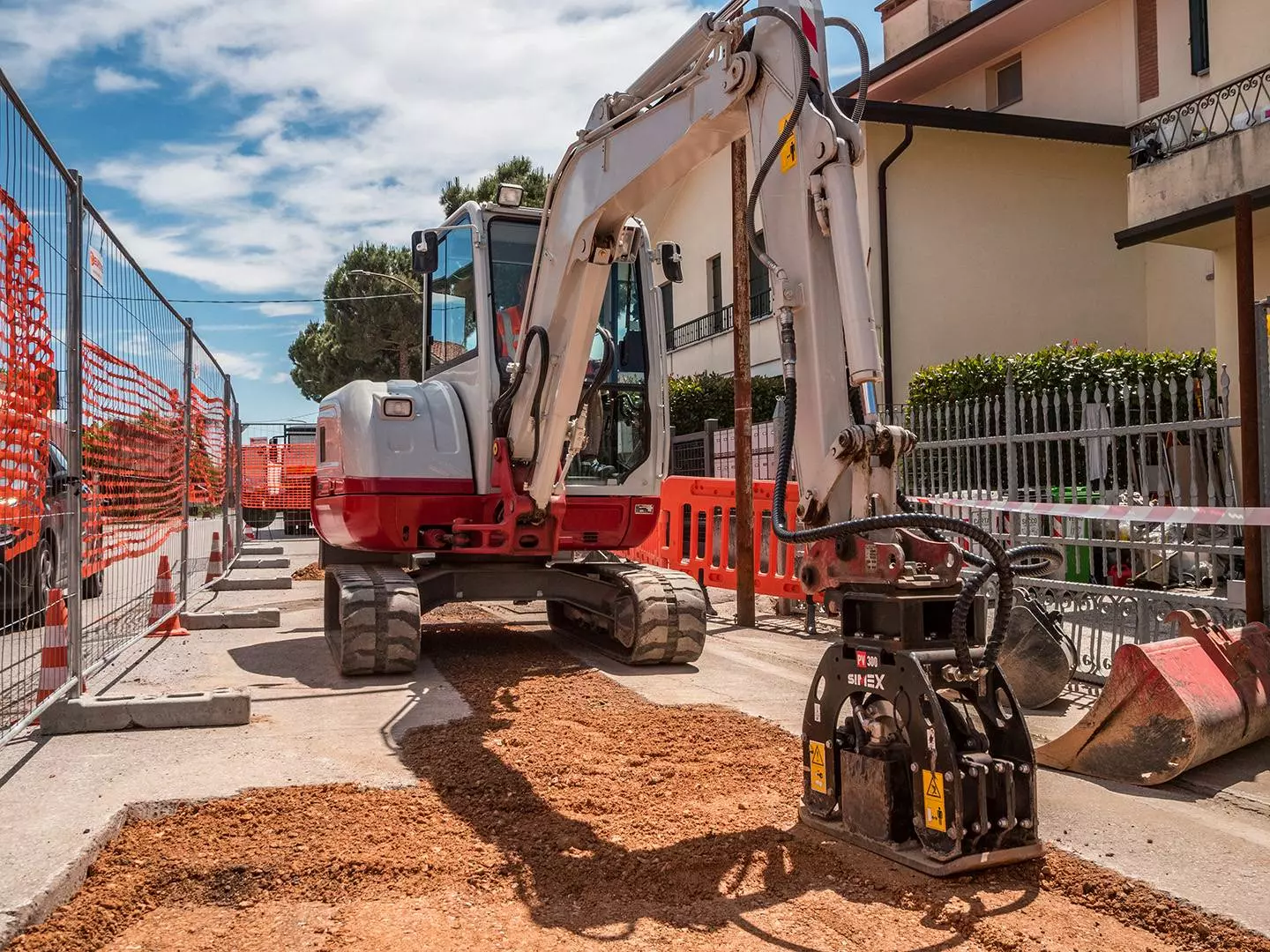

Designed to compact any surface, Simex PV vibrating plate compactors are an excellent solution for achieving a solid, even, and well compacted bottom that will never give way. Extremely precise and versatile. Possibility to mount the rotation device allows compaction in any position and in the most difficult-to-reach spots.
No routine maintenance is needed.
Features
-
PRECISION
-
MAINTENANCE-FREE
-
VERSATILE
Models
PV 300
| Recommended excavator weight | Plate dimensions | Weight without bracket (1) |
|---|---|---|
|
1,5-5 ton |
290x710 mm |
190 kg |
|
3300-11000 lbs |
11x28 inch |
420 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PV 450
| Recommended excavator weight | Plate dimensions | Weight without bracket (1) |
|---|---|---|
|
4-10 ton |
440x710 mm |
300 kg |
|
8800-22000 lbs |
17x28 inch |
660 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PV 600
| Recommended excavator weight | Plate dimensions | Weight without bracket (1) |
|---|---|---|
|
6-15 ton |
550x890 mm |
410 kg |
|
13000-33000 lbs |
22x35 inch |
900 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PV 700
| Recommended excavator weight | Plate dimensions | Weight without bracket (1) |
|---|---|---|
|
12-25 ton |
710x1160 mm |
875 kg |
|
26400-55000 lbs |
28x45 inch |
1925 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
PV 850
| Recommended excavator weight | Plate dimensions | Weight without bracket (1) |
|---|---|---|
|
20-40 ton |
860x1110 mm |
1040 kg |
|
44000-88000 lbs |
34x44 inch |
2300 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
