FOR SKID STEER LOADERS
Front Loader
Skid Steer Loader
Designed for compacting bottoms of trenches, Simex CT vibrating wheel compactors guarantee a permanently solid, even and well compacted bottom that ensures maximum road safety.
Perfect insulation from prime mover. Thanks to the reverse-rotation vibrating twin shaft positioned at center of the wheel, vertical forces are added up and horizontal forces are countered for increased operator comfort. Wheel width can be adjusted via bolted sectors that are easily changed on site.
Features
-
EXTREMELY PRECISE AND VERSATILE
-
MAXIMUM OPERATOR COMFORT
-
SOLID, EVEN AND WELL COMPACTED TRENCH BOTTOM
Models
CT 2.8 STANDARD
| Width of bolted sectors | Working depth | Max. vertical force | Required oil flow |
|---|---|---|---|
|
150-200-250-350-400 mm |
0-700 mm |
42 kN |
40-50 l/min |
|
6-8-10-12-14-16 inch |
0-27 inch |
9400 lbf |
11-13 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.

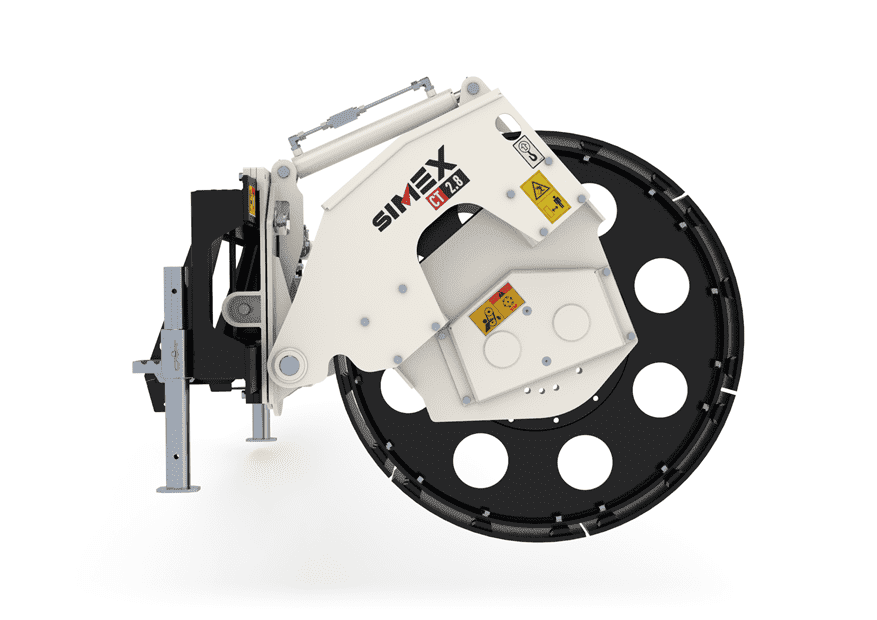

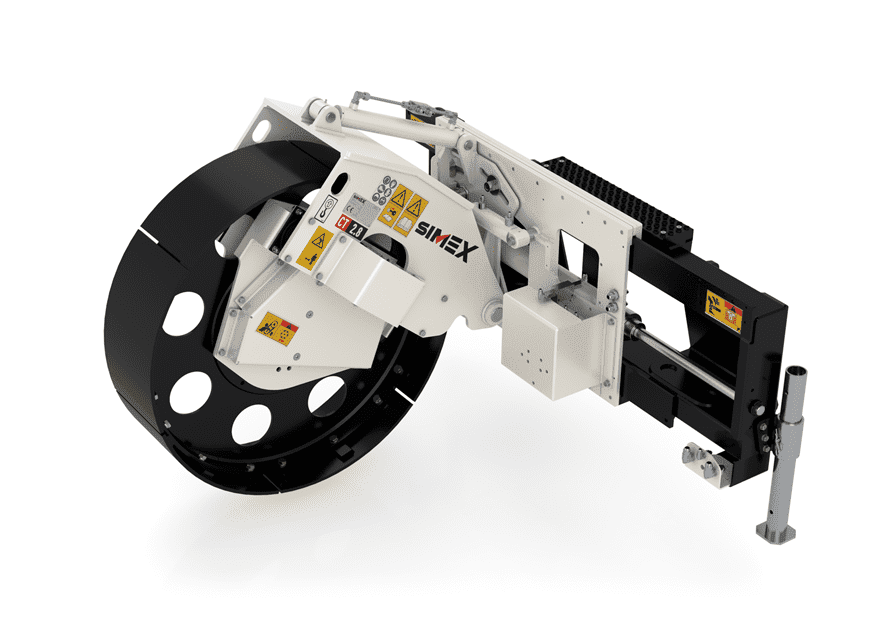

CT 2.8 F.O.
The CT 2.8 Full Optional permits lateral extension outside the wheel of the prime mover for working on roadsides or near walls and curbs.
| Width of bolted sectors | Working depth | Max. vertical force | Required oil flow |
|---|---|---|---|
|
150-200-250-350-400 mm |
0-700 mm |
42 kN |
50-70 l/min |
|
6-8-10-12-14-16 inch |
0-27 inch |
9400 lbf |
13-18 gpm |
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
