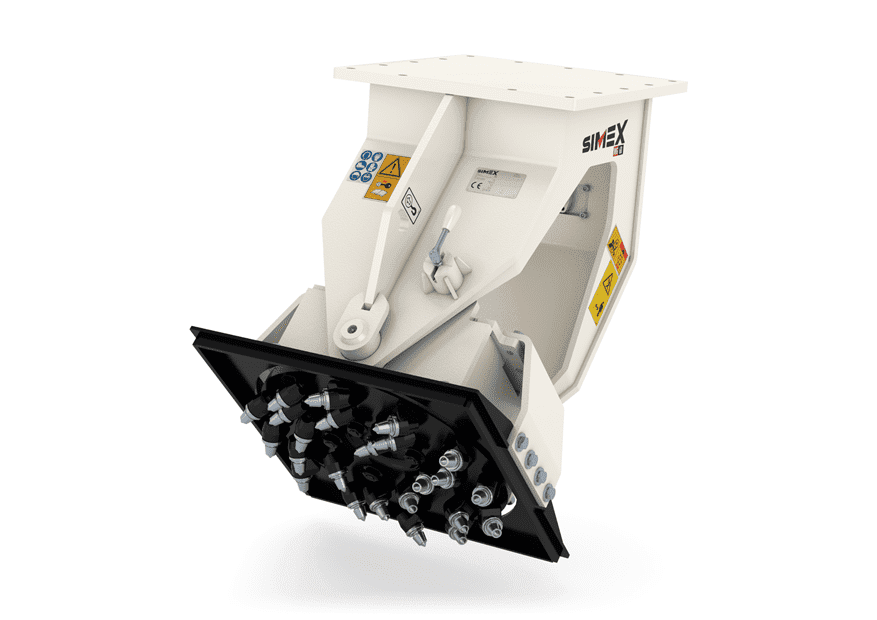

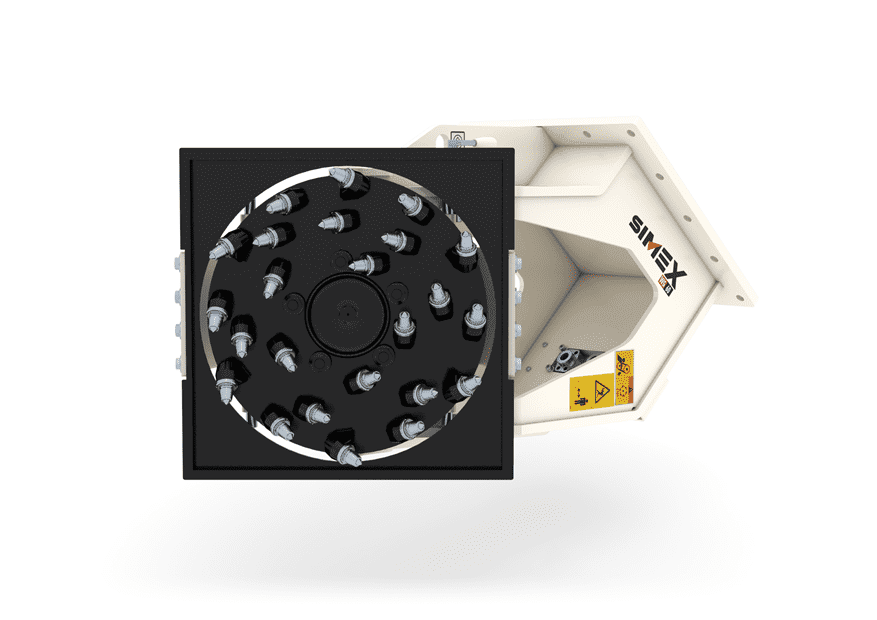

Designed for excavator mounting, Simex WG wall grinders are ideal for smoothing uneven surfaces and removing shotcrete bumps.
Quiet operation and no vibrations. Optimal for working in sensitive areas (city centers, hospitals, schools, tunnels, etc.). Excellent degree of surface finishing.
Features
-
QUIET OPERATION
-
NO VIBRATIONS
-
IDEAL FOR REMOVING SHOTCRETE BUMPS
-
EXCELLENT SURFACE FINISHING
Models
WG 40
| Recommended excavator weight (1) | Disk diameter | Operating weight (2) |
|---|---|---|
|
3,5-7 ton |
400 mm |
175 kg |
|
7700-15000 lbs |
16 inch |
385 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.
(2) Without mounting bracket attaching to prime mover.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
WG 50
| Recommended excavator weight (1) | Disk diameter | Operating weight (2) |
|---|---|---|
|
6-12 ton |
500 mm |
290 kg |
|
13000-26000 lbs |
20 inch |
640 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.
(2) Without mounting bracket attaching to prime mover.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
WG 60
| Recommended excavator weight (1) | Disk diameter | Operating weight (2) |
|---|---|---|
|
12-20 ton |
600 mm |
550 kg |
|
24000-40000 lbs |
24 inch |
1210 lbs |
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.
(2) Without mounting bracket attaching to prime mover.
Â
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
