Intended for excavator boom mounting, they are specially indicated for cutting and narrow trenching for fiber optics installation on hard and compact surfaces: asphalt, cement and rock. Slides parallel to the ground. Constant trenching depth. Mechanical or hydraulic adjustment of trench depth. Clean trench: the special design of outlets allows trench to be cleared efficiently at the depth programmed.
Features
-
CLEAN TRENCH
-
IDEAL FIBER OPTICS INSTALLATION
-
HIGH PERFORMANCE
-
HIGH CUTTING FORCE
Models

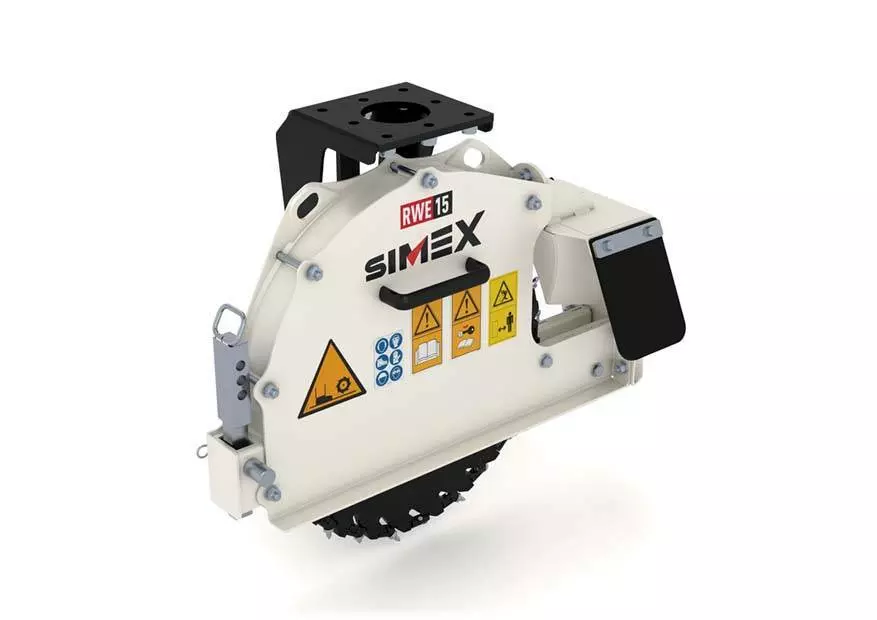

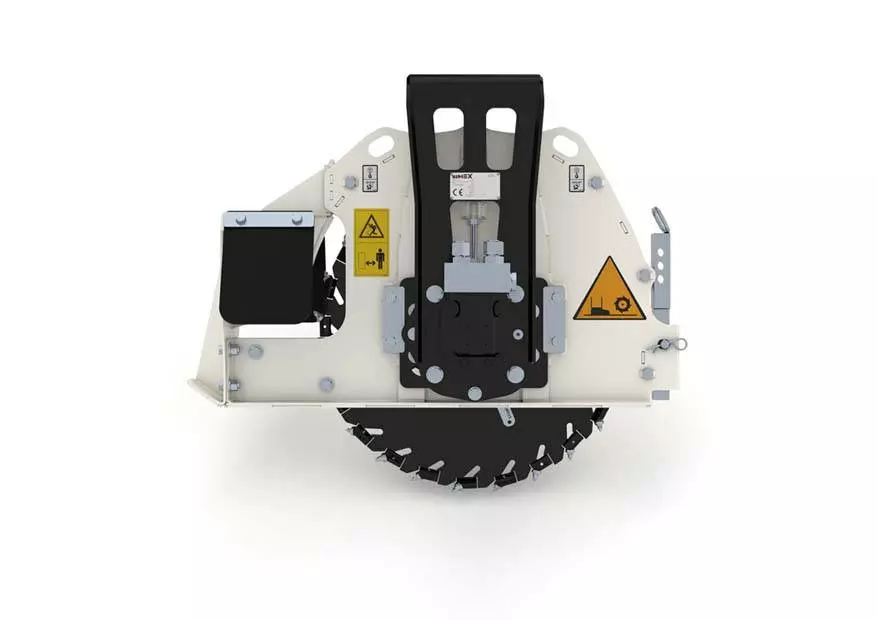

RWE 15
Specifically designed for slots and narrow trenches on hard and compact surfaces, such as asphalt and concrete, for fiber optic cable installation.
Available for skid steer mounting with the addition of the side shift​.
| Recommended excavator weight (1) | Depth | Required Oil Flow |
|---|---|---|
|
1.5-3.5 ton |
100-125-150 mm |
30-65 l/min |
|
3300-7700 lbs |
4-5-6 inch |
8-17 gpm |
RWE 20
| Recommended excavator weight (1) | Depth | Required Oil Flow |
|---|---|---|
|
2,5-5 ton |
200 mm |
30-75 l/min |
|
5500-11000 lbs |
8 inch |
8-20 gpm |
RWE 30
| Recommended excavator weight (1) | Depth | Required Oil Flow |
|---|---|---|
|
5-10 ton |
300 mm |
60-120 l/min |
|
11000-22000 lbs |
12 inch |
16-32 gpm |
RWE 35
Specifically designed for mini and micro-trenching on hard and compact surfaces, such as asphalt and concrete, for fiber optic cable installation.
Available also for skid steer mounting with the addition of the hydraulic side shift​.
| Recommended excavator weight (1) | Width | Depth | Operating weight | Required Oil Flow |
|---|---|---|---|---|
|
5-10 ton |
25-30-40-50-80 mm |
250-300-350 mm |
700 (2)(3) - 790 (2)(4) kg |
90-130 l/min |
|
11000-22000 lbs |
1-1,2-1,6-2-3,2 |
10-12-14 inch |
1540 (2)(3) - 1740 (2)(4) lbs |
24-34 gpm |
(2) Without mounting bracket attaching to prime mover.
(3) With a 25 mm wheel saw width.
(4) With a 80 mm wheel saw width.
RWE 50
Segmented wheel: Disk with removable, interchangeable segments allows quick variation of the trench width while maintaining the same base wheel.
| Recommended excavator weight (1) | Depth | Required Oil Flow |
|---|---|---|
|
14-18 ton |
300-500 mm |
100-160 l/min |
|
28000-39800 lbs |
12-20 inch |
26-42 gpm |
