Designed for skid steer mounting, Simex RW and RWA wheel saws provide different solutions for working on hard or compact surfaces such as asphalt, cement and rock: cutting and narrow trenches, set-section trenches, mini- and micro-trenches for  fiber optic cable installation. Full protection of the wheel at any working depth guarantees maximum safety of persons and property.  Self-leveling feature ensures constant trench depth and allows operator excellent visibility in any condition.

Features

  • CLEAN TRENCH
  • HIGH CUTTING FORCE
  • CONSTANT TRENCH DEPTH
  • MAX. SAFETY
  • EXCELLENT VISIBILITY FOR OPERATOR
  • STABILITY AND NO VIBRATIONS

Models

RW 150

Trench width Trench depth Operating weight (1) Required oil flow
25-30-40-50 mm
100-125-150 mm
190 kg
30-65 l/min
1-1.2-1.6-2.1 inch
4-5-6 inch
420 lbs
8-17 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.

These are the standard features, for custom solutions contact us.

RW 350

Trench width Trench depth Operating weight (1) Required oil flow
25-30-40-50-80 mm
250-300-350 mm
940 (2) - 1030 (3) kg
90-130 l/min
1-1,2-1,6-2-3,2 inch
10-12-14 inch
2072 (2) - 2250 (3) lbs
24-34 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment
(2) With a 25 mm wheel saw width.
(3) With a 80 mm wheel saw width.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.

These are the standard features, for custom solutions contact us.

RW 500

Trench width Trench depth Operating weight (1) Required oil flow
50-80-100-120 mm
250-500 mm
1275-1340 kg
100-160 l/min
2-3-4-5 inch
10-20 inch
2800-2950 lbs
27-43 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.

These are the standard features, for custom solutions contact us.

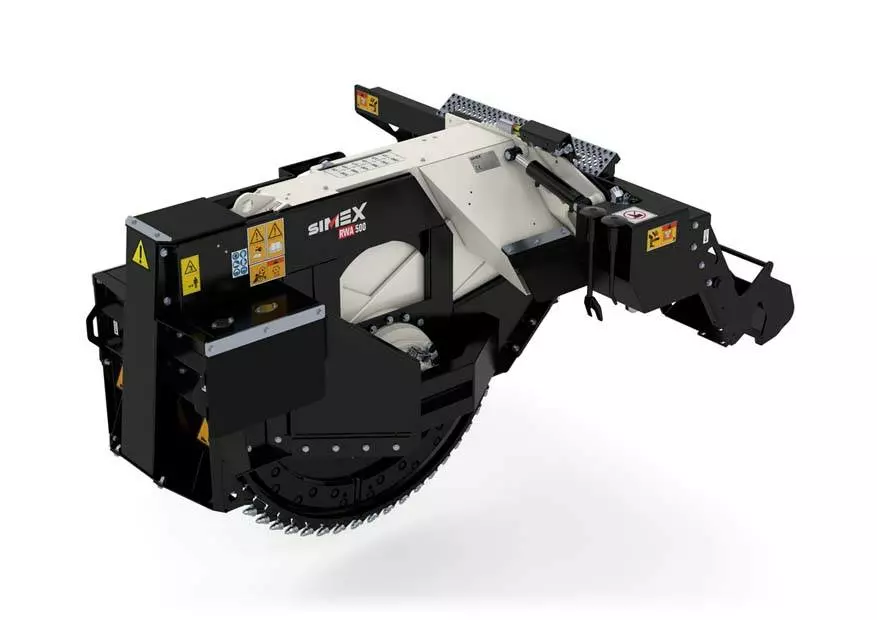

RWA 500

Features hydraulic lateral tilt: maintains wheel saw vertical in any condition. Allows milling near curbs with the wheel saw in vertical position even when the prime mover is not parallel to the road surface, compensating for a difference in level up to 200mm.

Trench width Trench depth Operating weight (1) Required oil flow
50-80-100-120 mm
250-500 mm
1300-1400 kg
100-160 l/min
2-3-4-5 inch
10-20 inch
2860-3080 lbs
27-43 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.

These are the standard features, for custom solutions contact us.
